Guardsman ULV Backpack
| Weight | N/A |
|---|---|
| Dimensions | N/A |
When you need easy portability, reliable performance, rugged dependability and operator comfort in a ULV spray machine for mosquito control, the Guardsman ULV Backpack is your answer.
- Air-cooled 2-Cycle Kawasaki engine delivering high performance and low fuel consumption
- 6 different metering tips for adjustable flow rate settings
- Corrosion- and UV-ray resistant formulation tank
- Fingertip operator control functions
- Open/Close valve for easy filter cleaning even with a full tank
- Sets-up in only 5 minutes
- Manufactured by Guarany
- Distributed exclusively by Clarke for public health mosquito control
Product Details
About the Guardsman™ ULV Backpack
The Guardsman ULV Backpack uses the same advanced engineering and quality concepts as larger ULV units, yet only weighs 23.8 lbs, making it ideal for public health mosquito control in smaller, more confined areas.
Available exclusively through Clarke, the Guardsman ULV Backpack features an air-cooled, 2-Cycle Kawasaki engine, 1/2 gallon fuel tank, and six flow rate settings. The formulation tank is corrosion resistant with a thin profile that sits snugly flat-to-the-back for greater operator comfort. Best of all, set-up time is only 5 minutes!
Guardsman™ ULV Backpack Specs-at-a-Glance
This backpack has a highly efficient spray system for ULV applications for oil and water-based products. And with features such as a low fuel consumption engine and a corrosion and UV-ray resistant chemical tank, the Guardsman is the best choice for a dependable, operator-friendly ULV backpack.
Engine Specs:
- 2-Cycle air-cooled Kawasaki TEX54M
- Capacity: 48.6 cm3
- Power: 3.7/2.8 hp/kw
- Rotation: 2200-7600 rpm range
Machine Specs
- Approximate Weight: 23.8 lbs
- Chemical Tank Capacity: 1.5 gals
- Fuel Tank Capacity: 0.5 gals
- Flow Rates: 1.7 – 8.5 fl oz/min (based on 6 different ULV Nozzle Tip Options)
- Horizontal spray reach: 49.2 ft
- Vertical spray reach: 39/4 ft
- Dimensions: 15.7 x 11.8 x 24.4 in
- Shipping carton: 18.1 x 12.4 x 25.2 in

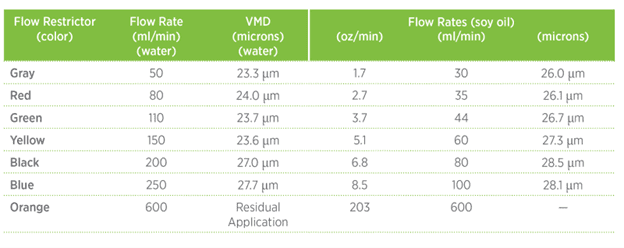

P-2 Nozzle Options and Flow Rates
The Guardsman ULV Backpack comes with six different metering tips allowing for flow rates between 1.7 and 8.5 fl oz/min for true ULV adulticide droplets.
Assembling the Guardsman
From unpacking the Guardsman through set-up, watch this tutorial video on what to expect when you receive your new Guardsman ULV backpack.
Calibrating the Guardsman
Ready for your first ULV application with a Guardsman? Make sure you calibrate your machine first to dial-in on your desired flow rate. Watch this Step-by-step video on how to calibrate the Guardsman ULV backpack sprayer.
